This Abaqus CAE project models the modal analysis of a flexible beam connected to two springs. The beam has a box-shaped cross-section and is modeled as a flexible structural component with distributed mass.
The objective is to determine the system’s natural frequencies and corresponding mode shapes using Abaqus/Standard.
Modal Analysis Problem Definition

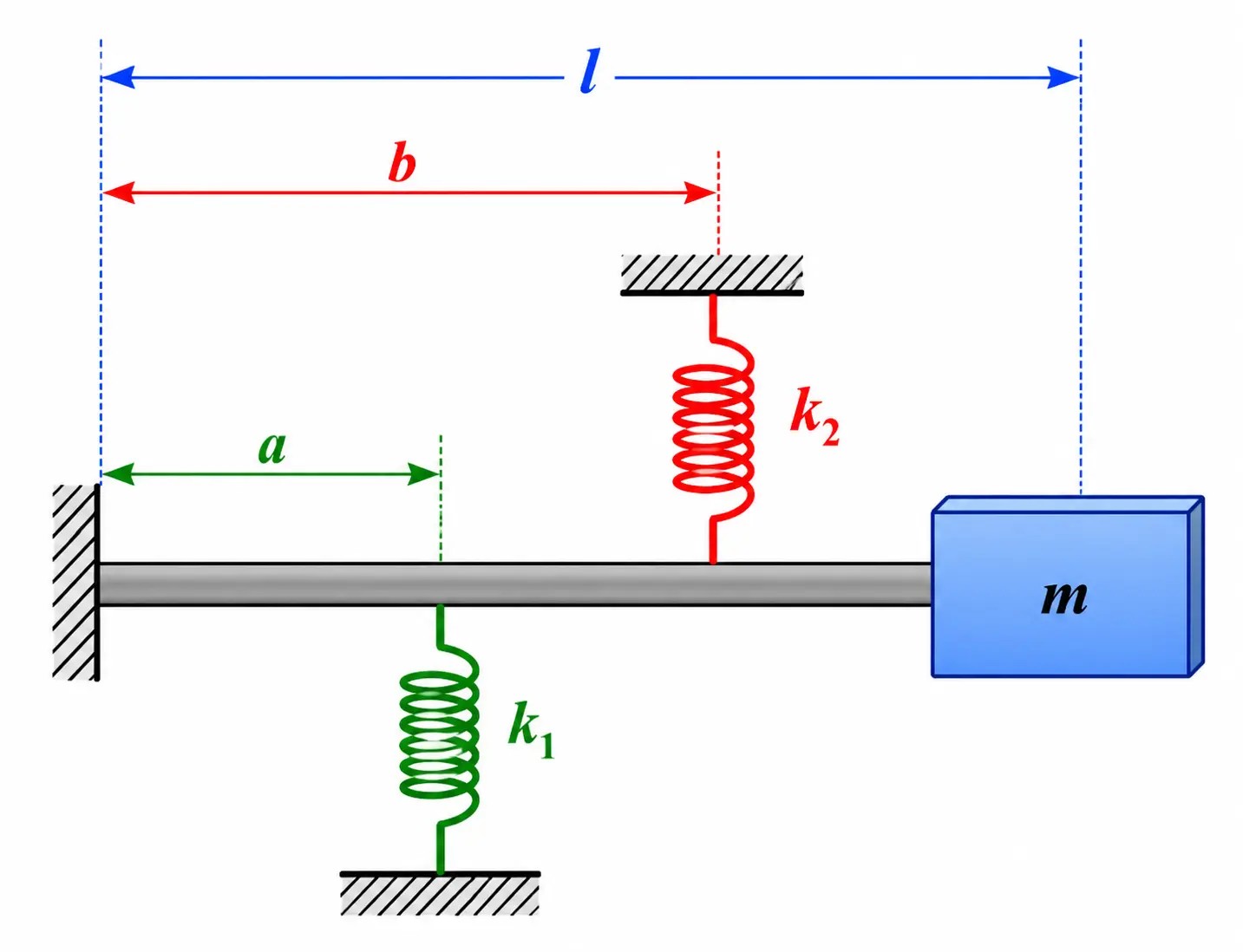

A flexible beam with length L and mass m is connected to two springs. The beam has a hollow box-shaped cross-section, and the spring stiffness coefficients are assigned as model parameters.
The model determines the dynamic characteristics of the coupled beam–spring system through an eigenfrequency extraction analysis.
Because the problem statement allows arbitrary dimensions, material properties, and spring coefficients, representative engineering values are used in the Abaqus model.
Abaqus Modeling on Beam and Springs
The project includes the main steps required to build and analyze the system:
- Creation of the flexible beam with a box-shaped cross-section
- Definition of beam material and section properties
- Assignment of mass and structural properties
- Modeling of the two spring connections
- Definition of appropriate boundary conditions
- Assembly of the beam and spring system
- Eigenfrequency extraction using a Frequency step
- Calculation of the system’s natural frequencies
- Visualization of the corresponding mode shapes
Why Choose This Product?
✅ Time‑Saving – skip the tedious modeling setup and jump straight into simulation and post‑processing.
✅ Educational – learn how to properly set up spring‑beam interactions, boundary conditions, and modal extraction in Abaqus.
✅ Adaptable – because all parameters are left as variables, you can easily modify the model for parametric studies or optimization.
✅ Robust – validated against analytical solutions for basic cases, ensuring accuracy of your results.

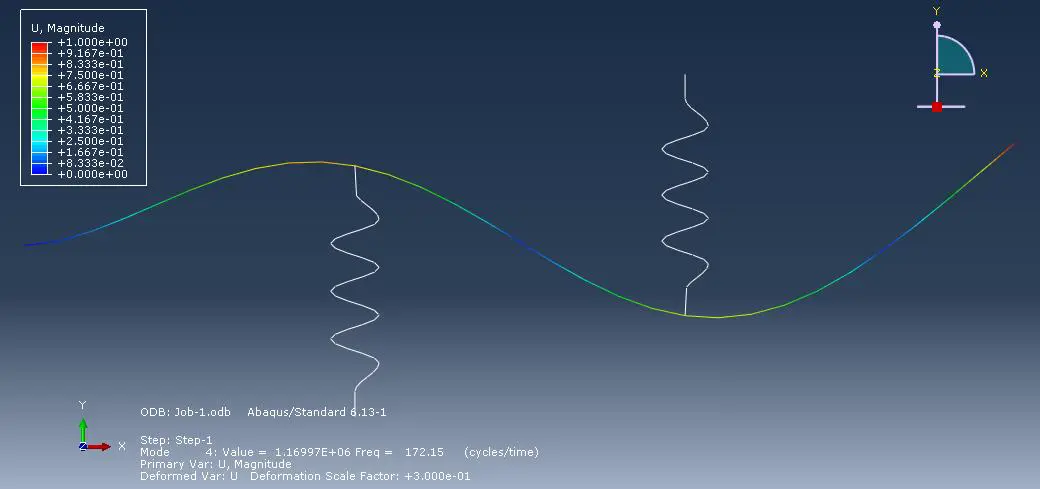

Results

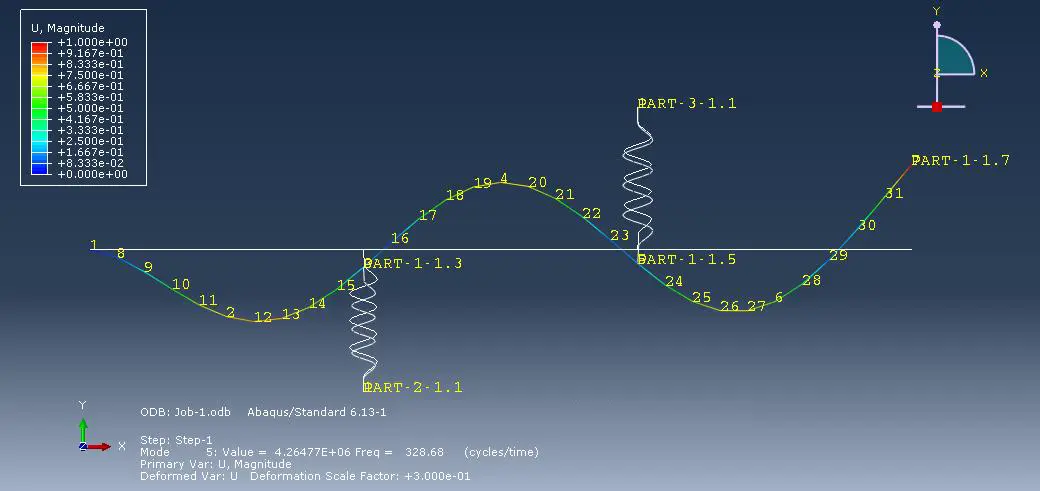

The Abaqus analysis provides the natural frequencies of the beam–spring system and the associated mode shapes. These results can be used to study the influence of beam flexibility, mass, and spring stiffness on the dynamic response.
Files Included
The downloadable package includes the Abaqus model files required to reproduce the simulation, such as:
- Abaqus CAE file
- Abaqus input (INP) file, where applicable
This project is suitable for students, researchers, and engineers who want a practical example of modal analysis, eigenfrequency extraction, flexible beam modeling, and spring–structure interaction in Abaqus.
Applications
This model can be useful for studying:
- Modal analysis in Abaqus
- Natural frequency extraction
- Mode shape visualization
- Flexible beam dynamics
- Beam–spring systems
- Structural vibration
- Influence of spring stiffness on natural frequencies
- Finite element modeling of mechanical systems
Software: Abaqus/CAE
Analysis: Linear perturbation – Frequency
Model Type: Flexible beam with two springs
Main Outputs: Natural frequencies and mode shapes
Instant Download – After purchase, you will receive the complete Abaqus files and documentation in a single ZIP archive.
Take the guesswork out of modal analysis. Get your model today and start exploring the dynamic behavior of flexible beam‑spring systems!
