Abaqus CAE File: Stress Analysis of a Plate with Circular Hole

Stress concentration around holes is one of the fundamental topics in mechanical and structural engineering. Circular holes in plates are widely used in practical applications such as bolted joints, lightweight structures, aerospace components, and machine parts. This Abaqus CAE file provides a complete finite element model for analyzing the stress distribution around a circular hole under tensile loading.

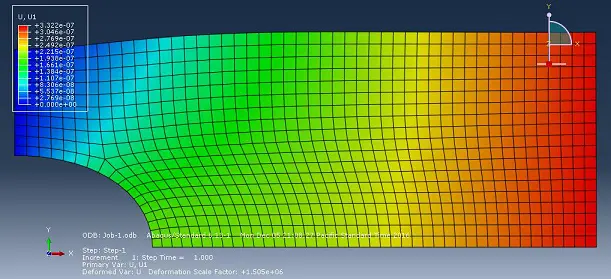

In this example, a flat plate with a central circular hole is modeled using Abaqus/CAE under plane stress conditions. The plate is subjected to an applied tensile force on one side while the opposite side is constrained. Due to geometric symmetry, only one-quarter of the plate is modeled, reducing computational cost while maintaining accurate results.

The model demonstrates how to define symmetry boundary conditions, apply mechanical loads, generate an appropriate mesh, and evaluate stress concentration effects around the hole.

What You Will Learn

By using this Abaqus CAE model, you will learn:

• How to create a 2D plane stress model in Abaqus
• How to apply symmetry conditions for reduced models
• How to define tensile loading and constraints
• How to assign material properties and section definitions
• How to create an efficient finite element mesh

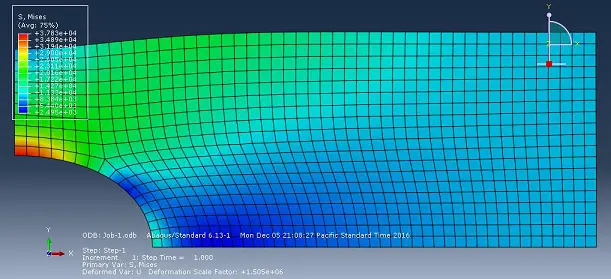

• How to analyze stress distribution around circular holes
• How to identify regions with maximum stress concentration

Included Files

The product package includes:

✅ Abaqus CAE model file
✅ Complete geometry definition
✅ Material and section assignments
✅ Boundary conditions and loading setup
✅ Mesh configuration
✅ Analysis step definition
✅ Ready-to-run simulation model

Applications

This Abaqus example is useful for:

• Mechanical engineering students learning FEA
• Researchers studying stress concentration problems
• Engineers validating analytical solutions
• Beginners learning Abaqus modeling workflow
• Anyone interested in structural stress analysis

Why Use This Abaqus CAE File?

Creating finite element models from scratch can be time-consuming. This ready-made Abaqus model allows you to quickly understand professional modeling practices and focus on simulation results instead of spending hours setting up the model.

This example can also serve as a template for more advanced studies involving:

• Crack initiation near holes
• Fatigue analysis
• Composite plates with holes
• Contact problems around fasteners
• Structural optimization
