This Abaqus CAE file demonstrates the plastic analysis of a beam subjected to a concentrated load. The model is designed to study the nonlinear structural response of the beam as it transitions from elastic behavior to plastic deformation under increasing load.
In this example, the beam is fixed at both ends and loaded with a concentrated force at its midpoint. A nonlinear static analysis is performed to evaluate the beam’s deformation, stress distribution, and plastic response. The resulting load–displacement behavior provides valuable insight into the structural performance after yielding.
📦 Download Package Includes:
- ✅ Abaqus CAE File (.cae) – ready-to-run model for the Plastic Analysis of a Cantilever Beam
Perfect for students, researchers, and simulation engineers who want to practice real FEM workflows in Abaqus.
This example is ideal for students, researchers, and engineers who want to learn nonlinear material modeling and plastic deformation analysis in Abaqus.
What You Will Learn
- Creating a beam model in Abaqus/CAE
- Defining elastic-plastic material properties
- Applying fixed support boundary conditions
- Applying a concentrated load
- Performing nonlinear static analysis
- Modeling material plasticity

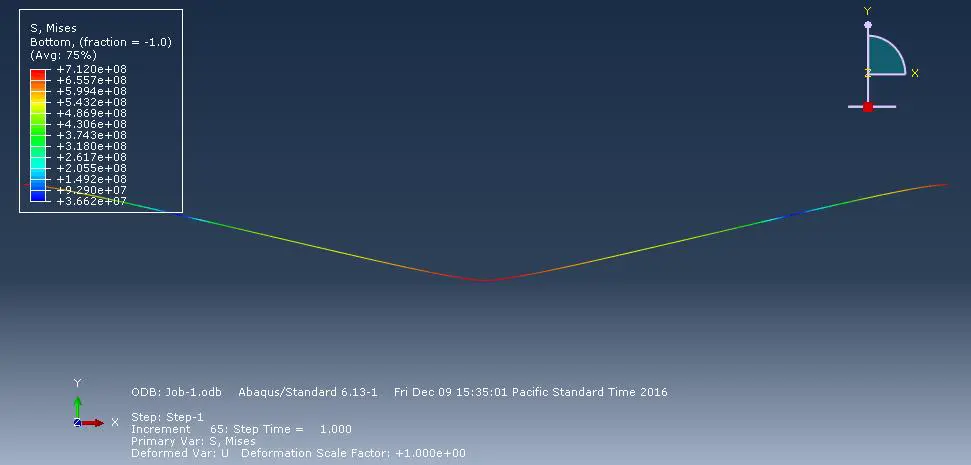

- Evaluating von Mises stress distribution
- Visualizing plastic strain development
- Extracting the load–displacement curve
- Interpreting structural behavior beyond the elastic limit
Product Features
- Ready-to-run Abaqus CAE model
- Nonlinear static analysis
- Elastic-plastic material model
- Concentrated loading
- Fixed support boundary conditions
- Optimized finite element mesh
- Complete model setup
- Fully editable Abaqus model
Applications
This Abaqus example is suitable for:
- Plastic deformation analysis
- Structural mechanics education
- Beam bending analysis
- Nonlinear finite element analysis
- Mechanical engineering courses
- Abaqus self-learning
- Benchmark verification
Included Files
Your download includes:
- Abaqus CAE model (.cae)
- Abaqus input file (.inp) (if included)
- Complete geometry and assembly
- Material definition
- Boundary conditions
- Load application
- Mesh configuration
- Ready-to-run simulation
Why Choose This Model?
Plastic deformation is a key aspect of structural engineering and mechanical design. This Abaqus CAE file provides a practical introduction to Finite Element Analysis (FEA) of nonlinear beam structures. By combining elastic-plastic material modeling with nonlinear static analysis, the example demonstrates how FEA can accurately predict stress distribution, permanent deformation, and load–displacement behavior after yielding. It is an excellent learning resource for students, researchers, and engineers who want to strengthen their understanding of advanced structural analysis using Abaqus.
